Hitachi Travel Device Assy 9155748/9149237 travel reducer
Part No: 9155748 travel device assy, 9149237 travel device
Application: EX270-5,EX300-5,EX300LC-5

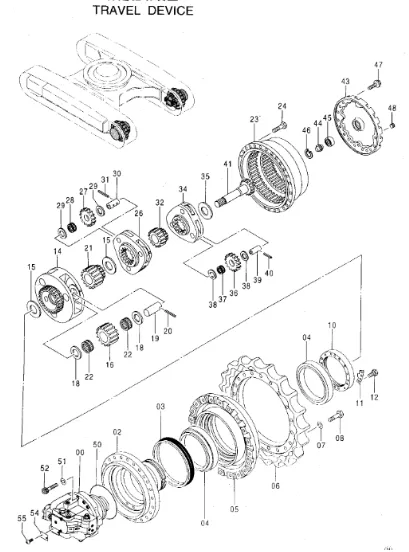

| Part No | Qty | Parts name |
| -9155748 | [2] | TRAVEL DEVICE ASS'Y |
| 9149237 | [2] | TRAVEL DEVICE ASS'Y |
| -9155694 | [1] | MOTOR;OIL |
| 9149125 | [1] | MOTOR;OIL |
| 1022194 | [1] | HOUSING |
| 4066695 | [1] | SEAL;GROUP |
| 4192975 | [2] | BRG.;ROL. |
| 1022179 | [1] | DRUM |
| 1022168 | [1] | SPROCKET |
| A590920 | [20] | WASHER;SPRING |
| J932060 | [20] | BOLT |
| 3036256 | [1] | NUT |
| 4192974 | [1] | PLATE;LOCK |
| J901225 | [2] | BOLT |
| 1022198 | [1] | CARRIER |
| 4192979 | [2] | SPACER |
| 3075003 | [3] | GEAR;PLANETARY |
| 4269470 | [6] | PLATE;THRUST |
| 4269452 | [3] | PIN |
| 4192021 | [3] | PIN;SPRING |
| 3075005 | [1] | GEAR;SUN |
| 4371402 | [6] | BRG.;NEEDLE |
| 1022195 | [1] | GEAR;RING |
| J931640 | [28] | BOLT |
| 1022197 | [1] | CARRIER |
| 3075002 | [3] | GEAR;PLANETARY |
| 4183818 | [3] | BRG.;NEEDLE |
| 4284521 | [6] | PLATE;THRUST |
| 4269451 | [3] | PIN |
| 4197763 | [3] | PIN;SPRING |
| 3074989 | [1] | GEAR;SUN |
| 1022196 | [1] | CARRIER |
| 4308769 | [1] | SPACER |
| 3075001 | [3] | GEAR;PLANETARY |
| 4269471 | [3] | BRG.;NEEDLE |
| 4284520 | [6] | PLATE;THRUST |
| 4269472 | [3] | PIN |
| 4192020 | [3] | PIN;SPRING |
| 2038915 | [1] | SHAFT;PROP. |
| 2038904 | [1] | COVER |
| 4277474 | [1] | PIN;STOPPER |
| 4278168 | [1] | BRG.;BALL |
| 930451 | [1] | RING;RETAINING |
| J011230 | [16] | BOLT;SEMS |
| 4245797 | [3] | PLUG |
| 4269473 | [1] | O-ring |
| 4287213 | [4] | WASHER;SPRING |
| M341885 | [4] | BOLT;SOCKET |
| 3053559 | [1] | NAME-PLATE |
| M492564 | [2] | SCREW;DRIVE |
| Product Models: | 9155748 Travel Device Assy |
|---|---|
| Place of Origin: | China |
| Packaging Details: | PP bag, Carton, Wooden cx, or as Required |
| Delivery Time： | 1-7 work days |
| Payment Terms： | T/T, L/C, Alipay, Deposit, PayPal, D/P |
