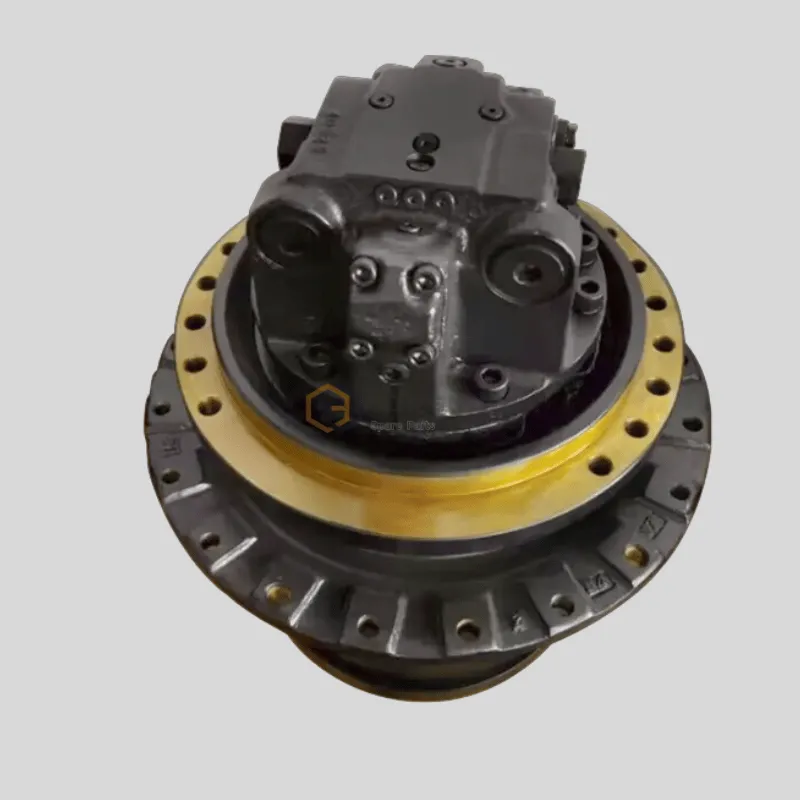

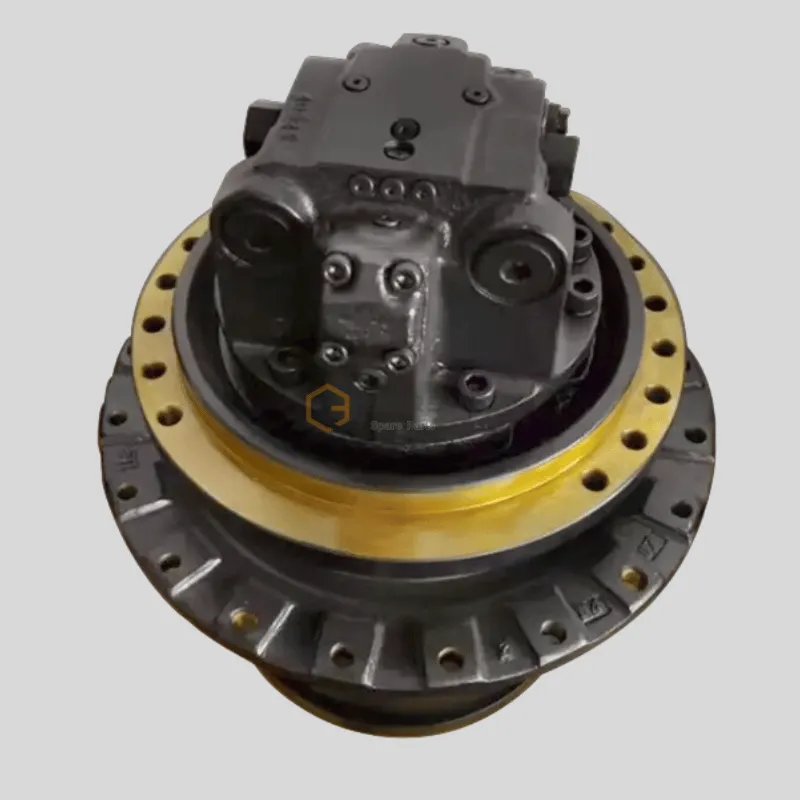

excavator Travel Motor Assy 9149125 9155694 Motor Final Drive EX330LC-5 Hitachi Model
Part No: 9149125 travel motor assy, 9155694 travel motor assy,EX300LC-5 travel motor assy
Application: EX300-5,EX350-5
| Part No | Qty | Parts name |
| -9155694 | [1] | MOTOR;OIL |
| 9149125 | [1] | MOTOR;OIL |
| 1019564 | [1] | CASING;MOTOR |
| 2040523 | [1] | DISC;DRIVING |
| 4199108 | [1] | BRG.;ROL. |
| 4199072 | [1] | BRG.;ROL. |
| 4191665 | [1] | NUT;BRG. |
| 4389598 | [1] | SPACER |
| 4191666 | [1] | SEAL;OIL |
| 4038529 | [1] | RING;RETAINING |
| 2040520 | [1] | ROTOR |
| 8068583 | [7] | PISTON |
| 3078298 | [1] | SHAFT;CENTER |
| 4194362 | [1] | SPRING;COMPRES. |
| 4198956 | [1] | PIN |
| 3036457 | [4] | PLATE;FRICTION |
| 3036456 | [5] | PLATE |
| 4193996 | [1] | SPACER |
| 3078190 | [1] | PISTON |
| 4252401 | [1] | D-RING |
| 4269474 | [1] | D-RING |
| 3054505 | [1] | SPRING;DISC |
| 4269473 | [1] | O-RING |
| 4506415 | [1] | O-RING |
| -9158391 | [1] | VALVE;BRAKE |
| 9157762 | [1] | VALVE;BRAKE |
| M341850 | [4] | BOLT;SOCKET |
| 2035236 | [1] | PLATE |
| 4364104 | [2] | PIN;KNOCK |
| 2040522 | [1] | VALVE |
| 4234628 | [1] | BUSHING |
| 4255238 | [2] | PLUG |
| 2040803 | [1] | LINK |
| 4262561 | [1] | BOLT;REAMER |
| 9157588 | [1] | PISTON;SERVO |
| 4260308 | [2] | RING;PISTON |
| 4265579 | [1] | O-RING |
| 9134112 | [1] | PLUG |
| 4506418 | [1] | O-RING |
| 9134109 | [1] | PLUG |
| 4506408 | [1] | O-RING |
| 4364921 | [1] | COVER |
| M341225 | [4] | BOLT;SOCKET |
| Product Models: | EX330LC-5 Travel Motor 9149125 |
|---|---|
| Place of Origin: | China |
| Packaging Details: | PP bag, Carton, Wooden cx, or as Required |
| Delivery Time： | 1-7 work days |
| Payment Terms： | T/T, L/C, Alipay, Deposit, PayPal, D/P |
